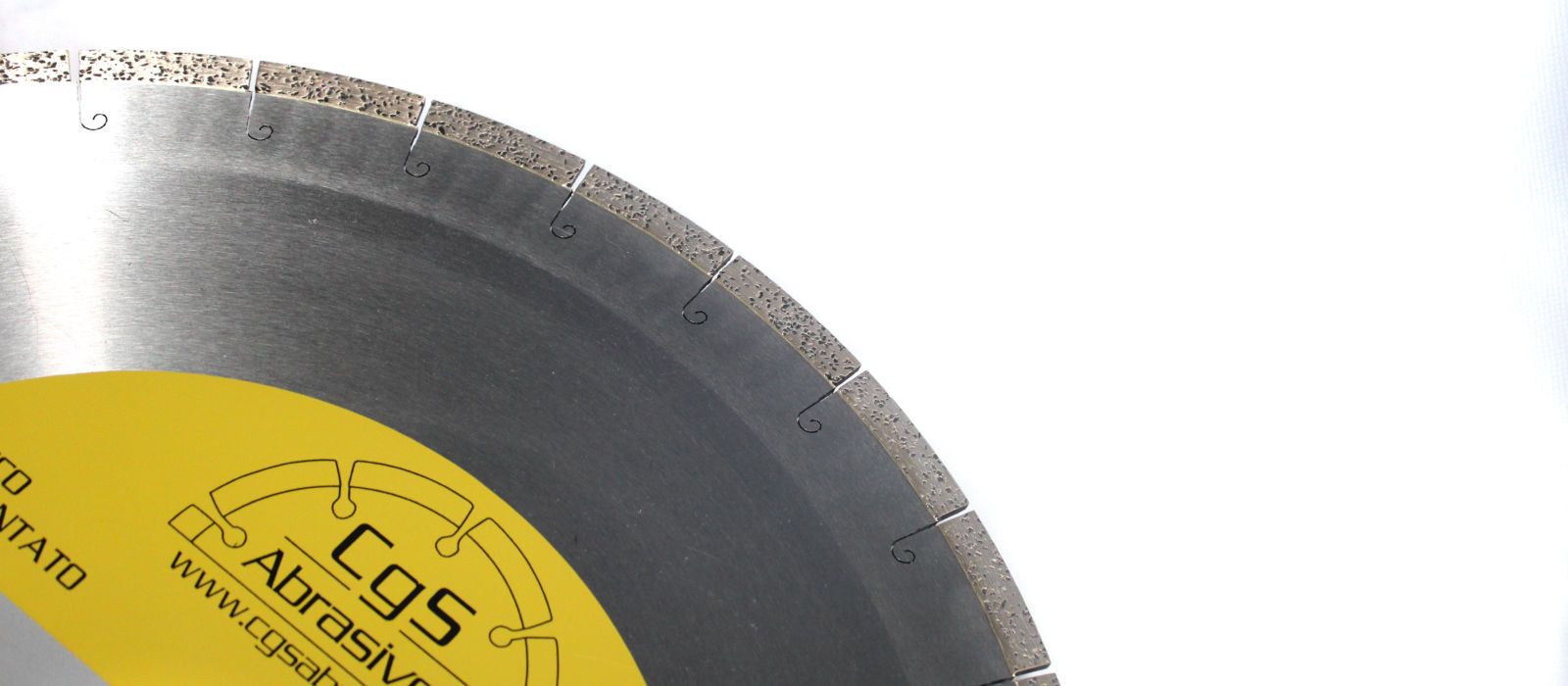

PORCELANIC DIAMOND BLADES - UCS LINE FOR DEKTON, NEOLITH, LAPITEC, etc.
The increasing spread of Ultra Compact Surfaces made us introducing diamond blades for DEKTON, LAPITECH, or NEOLITH. Their hardness and compactness extremely balanced diamond blades that can provide fast and clean cuts. Diameters available from 300mm to 500mm, standard, or LASER silenced. Made in Italy.
Enginereed for minimize chipping on sharp edges, these blades are available with different hardnesses.
Standard bore 60/50. Other bores available upon request.
| BLADE | Z | SEGMENTS | CORE | STANDARD | SILENCED | FLANGE | STONE |
|---|---|---|---|---|---|---|---|
| Ø 300 | 23 | 39/41X2.0X10 | 1.6 | UCS | |||
| Ø 350 | 27 | 39/41X2.5X10 | 1.8 | Ø270 | UCS | ||
| Ø 400 | 30 | 39/41X2.8X10 | 2.2 | Ø270 | UCS | ||
| Ø 450 | 34 | 39/41X3.4X10 | 2.5 | Ø320 | UCS | ||
| Ø 500 | 38 | 39/41X3.4X10 | 2.5 | Ø360 | UCS |
| BLADE | Z | SEGMENTS | CORE | STANDARD | SILENCED | FLANGE | STONE |
|---|---|---|---|---|---|---|---|
| Ø 300 | 23 | ||||||
| Ø 350 | 27 | 39/41X3.0X10 | 2.2 | Ø270 | UCS | ||
| Ø 400 | 30 | 39/41X3.2X10 | 2.4 | Ø270 | UCS | ||
| Ø 450 | 34 | 39/41X3.6X10 | 2.8 | Ø320 | UCS | ||
| Ø 500 | 38 | 39/41X3.6X10 | 2.8 | Ø360 | UCS |
| BLADE | Z | SEGMENTS | CORE | STANDARD | SILENCED | FLANGE | STONE |
|---|---|---|---|---|---|---|---|
| Ø 300 | 23 | ||||||
| Ø 350 | 27 | 39/41X3.2X10 | 2.4 | Ø270 | UCS | ||
| Ø 400 | 30 | 39/41X3.6X10 | 2.8 | Ø270 | UCS | ||
| Ø 450 | 34 | 39/41X4.0X10 | 3.2 | Ø320 | UCS | ||
| Ø 500 | 38 | 39/41X4.0X10 | 3.2 | Ø360 | UCS |
